Application to Relocate Transmission Facilities

Complete, print, and mail this form. Date Received



Applicant

Date
 Applicant (Individual or firm to be named in the Authorization and Agreement)
Address
City
 State
 Zip
Email Address
Phone Number
 Fax Number
 Mobile Number

Project Information

Project Name
Scope Of Project
Address
City
 State
 Zip
Who is the owner of record of the new easement area?
 Tax Parcel ID Number of new easement area
Section
 Township
 Range
 County
Nearest Intersection

Have you had contact with a Duke Energy representative regarding this project. If so, whom?
Name
 Date
Department
 Phone

Duke Energy rights of way may contain wood poles, concrete poles, steel poles, or steel towers. These structures are letter and number coded. For each transmission line in the project area, supply the line code for the two structures next to the project area.
Use the drop down list below to select the line code.

Line Line Code Beginning
Structure # 		Ending
Structure #
1
2
3
4
5

In addition to transmission structures, Duke Energy rights of way may also contain structures of other utilities. Which utilities have structures in the project area?

City of Gainesville
City of Leesburg
City of Ocala
Florida Power & Light
Duke Energy Distribution
 Gulf Power
Orlando Utilities Commission
Seminole Electric
Sumter Electric
Suwannee Valley Electric
 Tallahassee Electric
Talquin Electric
Tampa Electric
Withlacoochee Electric
Other     Cable, Fiber, Telephone

In addition to electric facilities, Duke Energy rights of way may also contain pipelines of other utilities. Which utilities have pipelines in the project area?

Bartow Anclote hot oil pipeline (Duke Energy)
Central Florida Pipeline Corp.
DeBary Gas Lateral (Duke Energy)
FGT Natural Gas Pipeline
Gulfstream Natural Gas Pipeline
Reliant Energy Natural Gas Pipeline
South Georgia Natural Gas Company
TECO/Peoples Gas

Other

Do you propose to construct improvements in the new Transmission Right of Way?
Yes        No
If yes, refer to Transmission Right of Way Use for further instructions.

Does this project involve the release of a Duke Energy Transmission Easement?
Yes        No
If yes, refer to Release of Easement for further instructions.

Will any wetlands be created or restored in the new Duke Energy Right of Way?
Yes        No
(If yes, provide drawing.)

Will any conservation easements be created or granted in the new Duke Energy Right of Way?
Yes        No
(If yes, provide drawing.)

Will any lands in the new Duke Energy Right of Way be dedicated to the city, county or state?
Yes        No
(If yes, provide drawing.)

Applicant's Legal Classification

State the applicant's legal classification and, if applicable, show the state in which the firm is incorporated. Please provide the company name and title and name of the person authorized to sign.

Corporation   Partnership   Sole Proprietor   Individual Florida Municipal Corporation State Incorporated
Company Name
Authorized Signer
 Title
Address
City
 State
 Zip
Email Address
Phone Number
 Fax Number

Agent

Agent's Name
Address
City
 State
 Zip
Email Address
Phone Number
 Fax Number
 Mobile Number

Applicant's Project Engineer

Company Name
Representative
Address
City
 State
 Zip
Email Address
Phone Number
 Fax Number
 Mobile Number

Application Checklist (if Applicable)

Application Check List:

All applications must include;

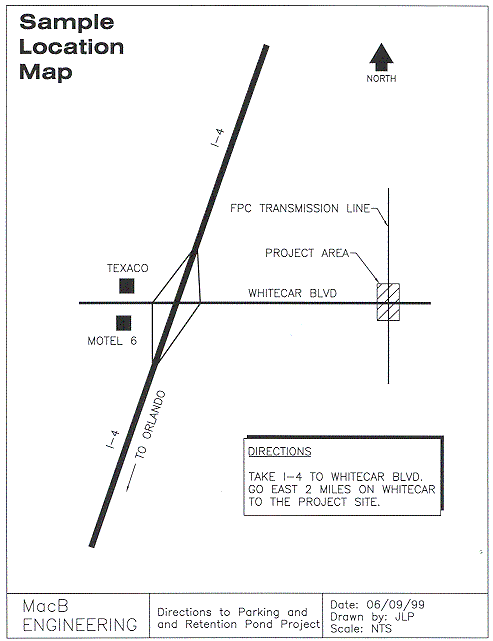

  • Location Map
  • Development plan including your preliminary plat drawing
  • Wetlands delineation survey
  • Topographical survey
  • Landscape plan
  • Utility plan
  • Electrical plan
  • Grading plan
  • Lighting plan
  • Plan & profiles
  • Boundary survey of parent tract with existing structures identified by their line code and structure number(s)
  • Legal description of parent tract
  • Proof of ownership (deed)
  • Current Title Report
  • Aerial Map
  • Submit nine (9) complete packages. The right of way boundaries and any improvements in the new easement must be highlighted on each set of plans.
  • $2,500 check payable to Duke Energy
Return Applications To
 Joel Chatham
Customer Relocation Project Manager
Duke Energy Florida, Inc.
3300 Exchange Place, NP2C
Lake Mary FL. 32746
Questions
 Email Joel at joel.chatham@duke-energy.com or call 407-942-9640
Note
 Refer to Transmission Relocation Process for further instructions and additional information.
